Expert CNC Machine Laser Calibration Services in Idaho

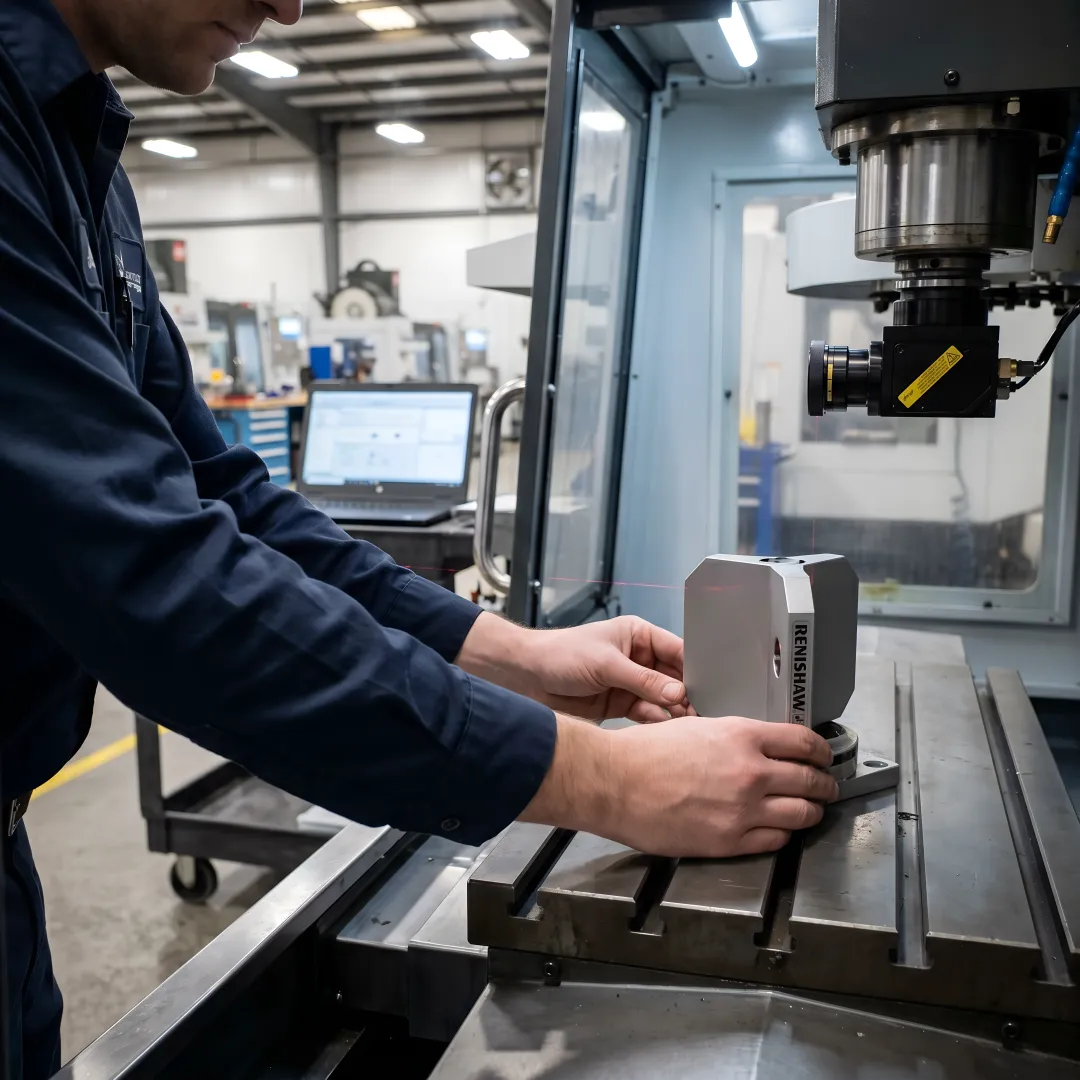

Laser calibration uses a laser interferometer system to precisely measure the positioning accuracy, repeatability, straightness, and squareness of CNC machine axes. The laser beam provides a reference accurate to 1.0 parts per million, allowing technicians to verify that the machine's actual movement matches its programmed commands across the full travel range. This process identifies alignment errors, mechanical wear, and accuracy deviations that affect part quality.

CNC machines should typically undergo laser calibration annually as part of preventive maintenance, though frequency depends on production volume, precision requirements, and machine condition. High-volume operations or facilities producing tight-tolerance parts may benefit from semi-annual calibration. Additionally, calibration should be performed after machine relocation, collision events, major repairs, or whenever accuracy problems arise.

Calibration duration varies based on machine size and complexity, but most 3-axis machines can be fully calibrated in 4-8 hours. Larger machines with extended travel or additional rotary axes may require a full day. Sarkinen Calibrating schedules work to minimize production impact, often performing calibrations during off-shifts or planned maintenance windows.

All measurements are NIST-traceable and meet International Standards, with accuracy to 1.0 parts per million (one millionth of an inch per inch). This exceeds the 10:1 ratio required for proper calibration, providing confidence that measurement uncertainty is minimal and results are reliable for critical manufacturing decisions.

Yes. Laser calibration reveals positioning errors, backlash, straightness deviations, and squareness problems that directly cause dimensional inaccuracies in machined parts. By measuring each axis across its full travel, we identify exactly where and how much error exists, helping you correlate machine accuracy issues with specific part features.

Absolutely. Calibrating new machines while still under warranty is critical. Shipping and installation commonly introduce alignment errors or hidden damage that may not be immediately obvious. Early calibration documents the machine's true condition, identifies issues the manufacturer should address, and establishes a baseline for future comparison.

Yes. Every calibration includes comprehensive documentation showing measurement results, deviations from specifications, and actionable recommendations. Reports are clear, detailed, and suitable for quality system records, warranty claims, or customer requirements. We also maintain baseline data for tracking performance trends over time.

Sarkinen Calibrating primarily serves Idaho, Portland OR, and SW Washington with faster response times than out-of-area providers. We also provide service to manufacturing facilities in Northern California and can accommodate customers outside our primary service area when needed.
